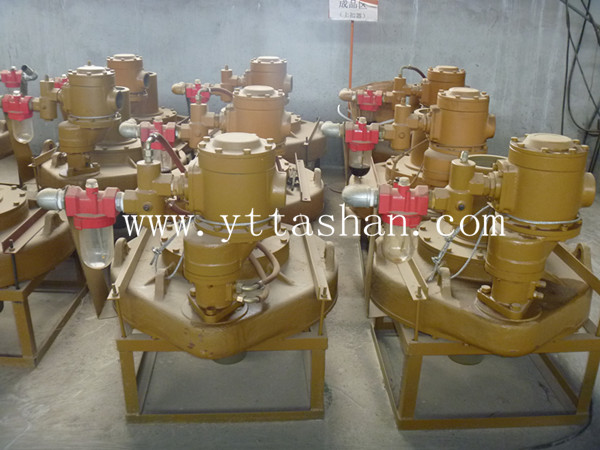

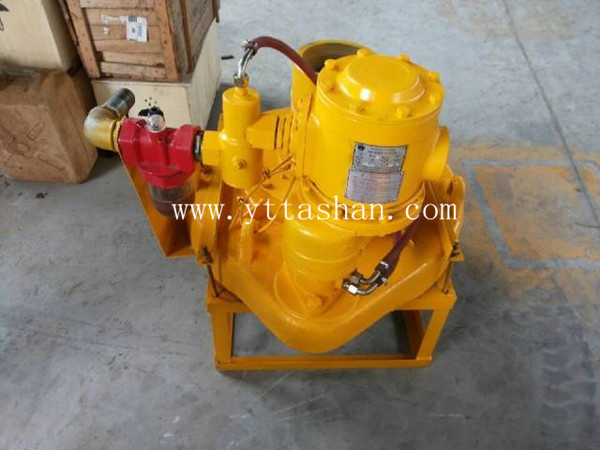

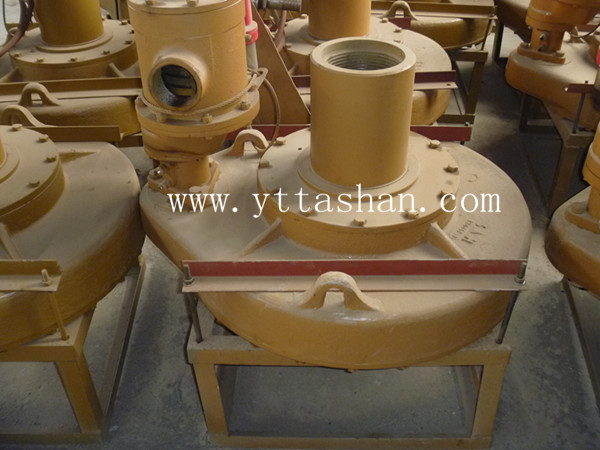

FSK-15上扣器
简介:
FSK-15风动上扣器用于油田钻井钻杆上扣之用。采用气动马达来驱动上扣器旋转,自动实现钻杆的连接,通过管路改变球阀的位置可实现远程控制,具有安全性、高效性和节省劳动力的作用,实用性较强
技术参数:
工作气压Working Pressure(Mpa) |
0.5-0.8 |
额定输出功率Rated output Power(KW) |
15 |
中心管最大扭矩Max torque of the Centre pipe(NM) |
≥1200 |
上扣时间Spinner Time(S) |
≤9 |
中心管速度Max Speed of the Centre pipe(R/min) |
≥170 |
输出齿轮行程Stroke of the Output Gear(mm) |
27 |
